ST Nucleo F334R8 RGB led example

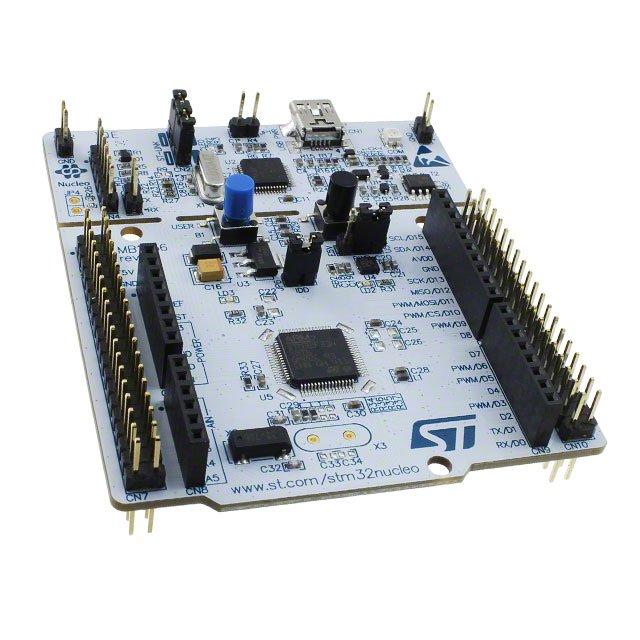

This is  a first example with the ST Nucleo F334R8 board, this uses the mbed online compiler. here is a picture of the board

ST Nucleo F334R8

ST Nucleo F334R8

In this example we flash the red, green and blue colours of an RGB led . Our RGB LED was a common anode type, so a low output switches the LED on and a high output switches the LED off. You may have to reverse this.

Code

[codesyntax lang=”cpp”]

#include "mbed.h"

DigitalOut red(D5);
DigitalOut blue(D8);
DigitalOut green(D9);

int main()
{
    while(1)
    {
        red = 0; //red on
        wait(1.0); // 1 sec
        red = 1; //red off
        green = 0; //green on
        wait(1.0); // 1 sec
        green = 1; //green off
        blue = 0; //blue on
        wait(1.0); // 1 sec
        blue = 1; // blue off
    }
}

[/codesyntax]
